This clothing size chart reference library includes garment measurement guides, apparel size chart examples, size grading references, and production size spec notes for custom clothing development.
Reference garment measurement charts for common apparel styles. Use these charts to understand measurement points, size grading, and fit details before developing your custom clothing order.
How to Use These Size Charts
These size charts are reference examples for custom clothing development. They help brands understand common measurement points, grading logic, and fit details. Final size specs can be customized based on your target customers, style design, fabric stretch, and sample feedback.
Need Adjusted Measurements for Your Brand?
How to Read These Measurement Charts
All measurements are garment measurements, not body measurements, unless stated otherwise. The letters on each diagram match the measurement codes in the table. Final size specs may change depending on fabric stretch, shrinkage, fit style, and sample fitting results.
Measurement Unit
Most measurements are shown in centimeters (cm). If you need inch measurements or a different size range, our team can adjust the chart for your target market.

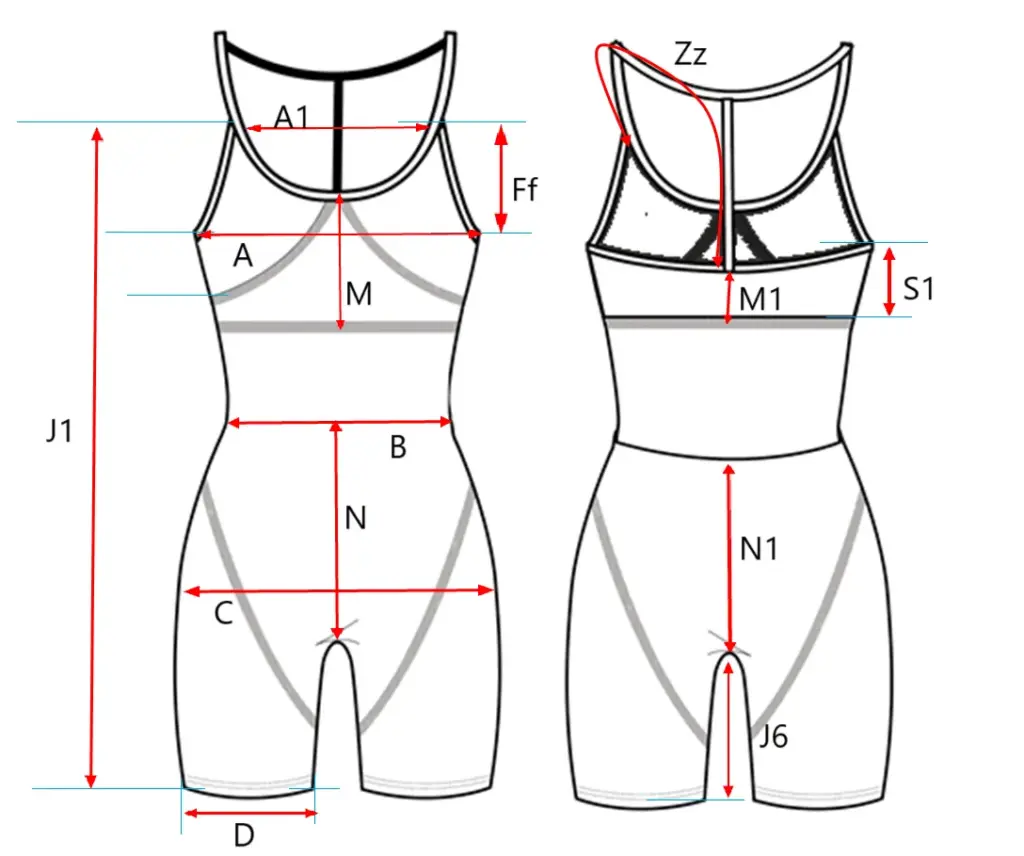

Bodysuit Measurement Guide & Size Chart Reference
Use this reference chart to review key measurement points, size grading, and fit details for bodysuit development. Final specs can be customized based on fabric stretch, fit preference, and brand requirements.
| Code | Description | XS | S | M | L | XL |
| A | Width chest | 30.8 | 32.6 | 34.4 | 36.2 | 38.0 |
| B | Waist width | 26.8 | 28.6 | 30.4 | 32.2 | 34.0 |
| C | Hip width | 32.8 | 34.6 | 36.4 | 38.2 | 40.0 |
| D | Hem width | 8.8 | 10.6 | 12.4 | 14.2 | 16.0 |
| J1 | Centre Front length | 81.0 | 82.0 | 83.0 | 84.0 | 85.0 |
| M | Length front part | 10.0 | 10.5 | 11.0 | 11.5 | 12.0 |
| M1 | Length back part | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 |
| A1 | Across front | 14.8 | 15.6 | 16.4 | 17.2 | 18.0 |
| K2 | Front neck drop | 5.8 | 6.1 | 6.4 | 6.7 | 7.0 |
| Zz | Straps length | 33.0 | 33.5 | 34.0 | 34.5 | 35.0 |
| C1 | Thigh | 10.8 | 12.1 | 13.4 | 14.7 | 16.0 |
| J6 | Inseam | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 |
| N | Front rise (incl. wb) | 24.2 | 24.9 | 25.6 | 26.3 | 27.0 |
| N1 | Back rise (incl. wb) | 30.0 | 31.0 | 32.0 | 33.0 | 34.0 |
Note: These charts are for reference only. Final production specs should be confirmed through sample fitting and brand approval.

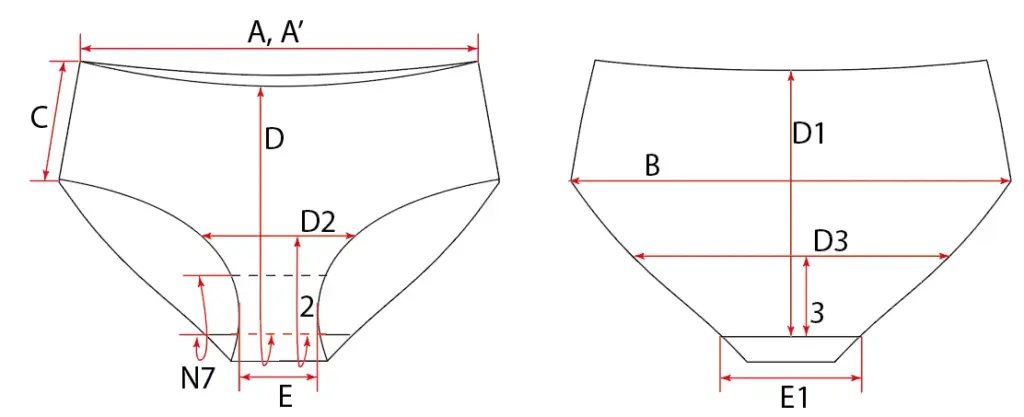

Panty Measurement Guide & Size Chart Reference
Use this reference chart to review key measurement points, size grading, and fit details for panty development. Final specs can be customized based on fabric stretch, fit preference, and brand requirements.
| Code | Description | S | M | L | XL | XXL |
| A | Waist line width | 31 | 34 | 37 | 40.6 | 44.2 |
| A’ | Waist line width extented | 32.8 | 36 | 39.2 | 43.4 | 47.6 |
| B | ½ Hip width | 32.8 | 36 | 39.2 | 42.8 | 46.4 |
| B1 | Distance between two front cup | 10.2 | 11 | 11.8 | 12.6 | 13.4 |
| C | Height of side seam | 15 | 15 | 15 | 16 | 17 |
| D | Front rise | 31.6 | 33 | 34.4 | 36.8 | 39.2 |
| D1 | Back rise | 25.6 | 27 | 28.4 | 30.8 | 33.2 |
| 2 | Position Front width | 10.9 | 11.7 | 12.5 | 13.7 | 14.9 |
| D2 | Front width | 6.6 | 8 | 9.4 | 11.4 | 13.4 |
| 3 | Position back width | 5.3 | 5.9 | 6.5 | 7.7 | 8.9 |
| D3 | Back width | 24.8 | 26.4 | 28 | 30 | 32 |
| N7 | Gusset length | 13 | 13 | 13 | 13 | 13 |
| E | Crotch width narrow (BINDING INCULIDING) | 4 | 4.5 | 5 | 5.5 | 6 |
| E1 | Crotch width at seam (BINDING INCULIDING) | 9 | 9.5 | 10 | 10.5 | 11 |
Note: These charts are for reference only. Final production specs should be confirmed through sample fitting and brand approval.

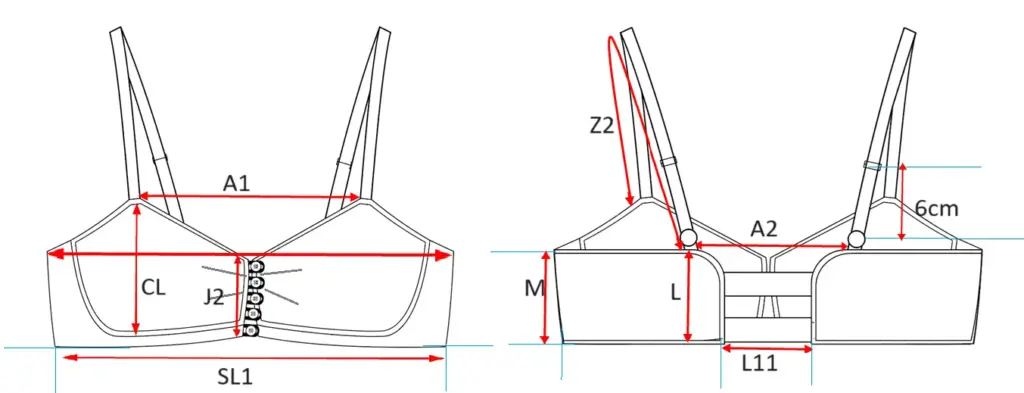

Bra Measurement Guide & Size Chart Reference
Use this reference chart to review key measurement points, size grading, and fit details for bra development. Final specs can be customized based on fabric stretch, fit preference, and brand requirements.
| Code | Description | XS | S | M | L | XL | XXL |
| A | Width chest | 36.6 | 38.4 | 42.0 | 45.6 | 49.2 | 52.8 |
| SL1 | The length of the bra along the bottom line | 31.6 | 33.4 | 37.0 | 40.6 | 44.2 | 47.8 |
| A1 | Front neck openning | 19.3 | 19.7 | 20.5 | 21.3 | 22.1 | 22.9 |
| A2 | Back Straps distance | 10.8 | 11.7 | 13.5 | 15.3 | 17.1 | 18.9 |
| J2 | Centre Front length (CF length) | 8.9 | 9.6 | 11.0 | 12.4 | 13.8 | 15.2 |
| CL | heigth cup | 15.0 | 16.0 | 18.0 | 20.0 | 22.0 | 24.0 |
| M | Side seam length | 6.5 | 7.0 | 8.0 | 9.0 | 10.0 | 11.0 |
| L | Center Back Hight | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| LL | full length straps | 32.0 | 33.0 | 35.0 | 37.0 | 39.0 | 41.0 |
| L1 | Back Elastic band lenght | 4.0 | 5.0 | 7.0 | 9.0 | 11.0 | 13.0 |
Note: These charts are for reference only. Final production specs should be confirmed through sample fitting and brand approval.

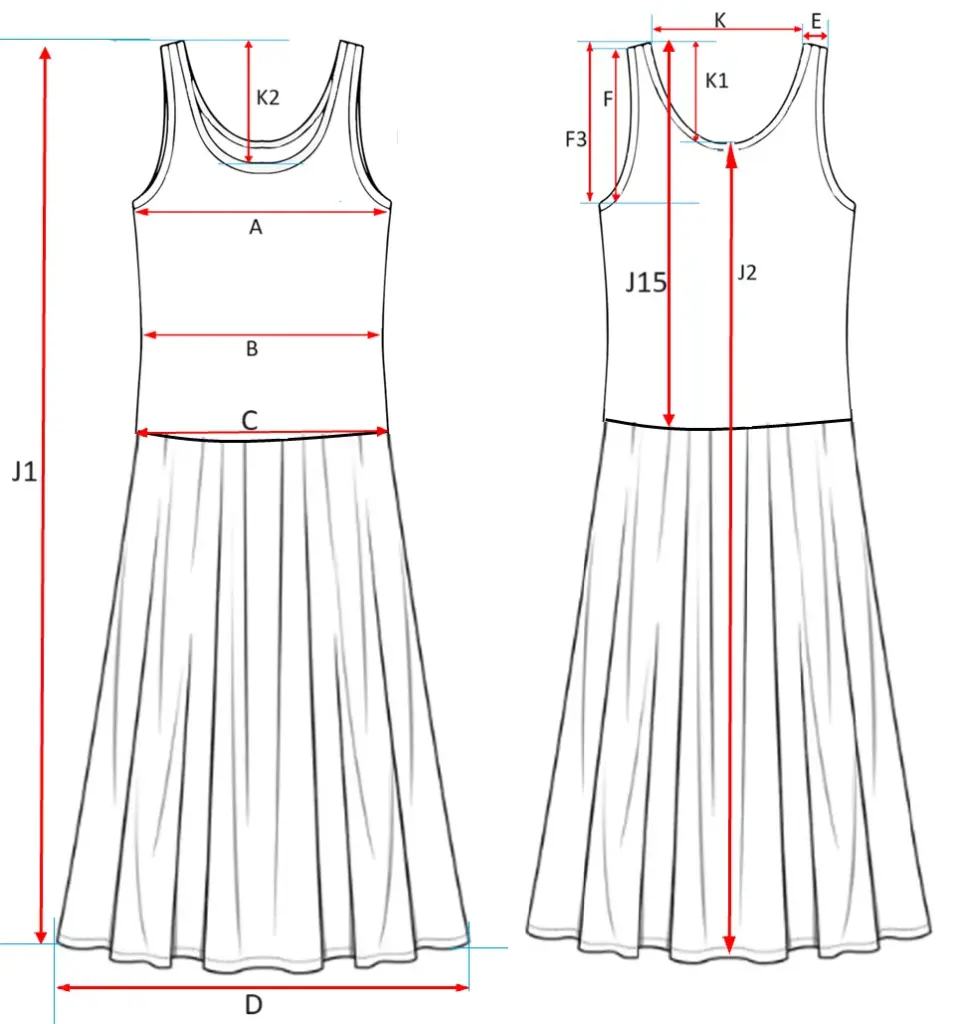

Dress Measurement Guide & Size Chart Reference
Use this reference chart to review key measurement points, size grading, and fit details for dress development. Final specs can be customized based on fabric stretch, fit preference, and brand requirements.
| Code | Description | XS | S | M | L | XL |
| A | 1/2 chest (1/2 circumference at armhole level) | 42.0 | 46.0 | 50.0 | 54.0 | 59.0 |
| B | Waist | 38.0 | 42.0 | 46.0 | 50.0 | 55.0 |
| J15 | Hip position From HPS | 50.0 | 51.0 | 52.0 | 53.0 | 54.2 |
| C | Hip width | 46.0 | 50.0 | 54.0 | 58.0 | 63.0 |
| D | Hem width | 102.0 | 106.0 | 110.0 | 114.0 | 119.0 |
| F | Armhole drop | 18.0 | 19.0 | 20.0 | 21.0 | 22.2 |
| F3 | Armhole drop from upper shoulder point | 19.2 | 20.6 | 22.0 | 23.4 | 25.0 |
| E | Shoulder Wıdth | 3.8 | 4.4 | 5.0 | 5.6 | 6.2 |
| K | Back neck width | 20.4 | 21.2 | 22.0 | 22.8 | 23.6 |
| K1 | Back neck drop from shoulder point | 2.4 | 2.4 | 2.5 | 2.5 | 2.7 |
| K2 | Front neck drop from shoulder point | 5.3 | 5.9 | 6.5 | 7.1 | 7.7 |
| J1 | Front length | 111.0 | 113.0 | 115.0 | 117.0 | 120.0 |
Note: These charts are for reference only. Final production specs should be confirmed through sample fitting and brand approval.

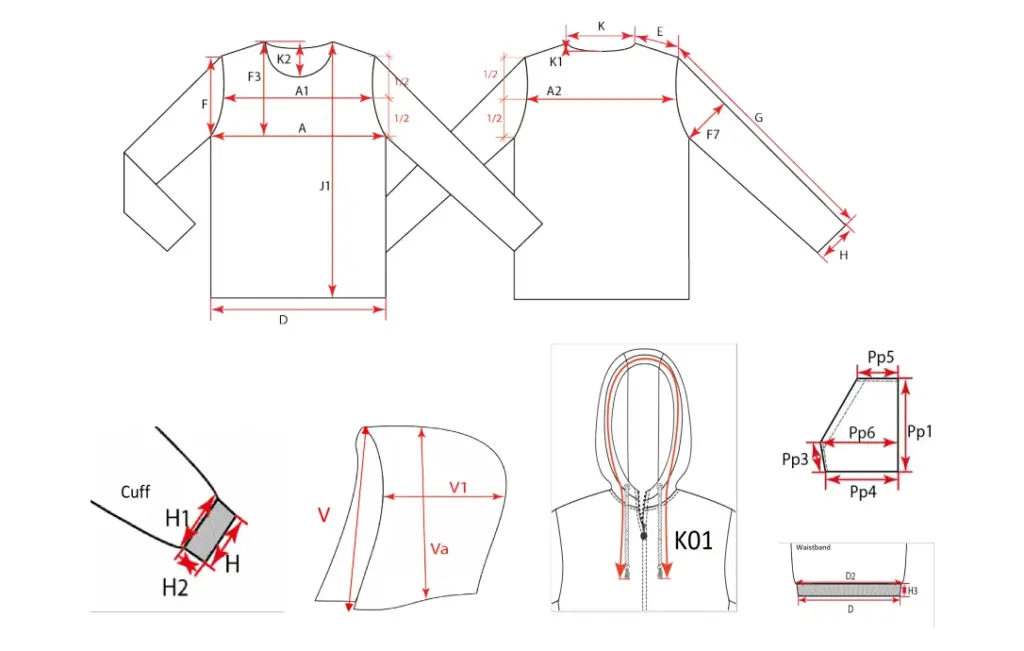

Hoodie Measurement Guide & Size Chart Reference
Use this reference chart to review key measurement points, size grading, and fit details for Hoodie development. Final specs can be customized based on fabric stretch, fit preference, and brand requirements.
| Code | Description | S | M | L | XL |
| A | 1/2 chest (1/2 circumference at armhole level) | 61.0 | 63.0 | 65.0 | 68.0 |
| D2 | Hem width above cuff | 58.0 | 60.0 | 62.0 | 65.0 |
| D | Hem width | 55.0 | 57.0 | 59.0 | 62.0 |
| H3 | Top belt-cuff height | 6.5 | 6.5 | 6.5 | 6.5 |
| F | Armhole drop | 27.0 | 27.5 | 28.0 | 28.7 |
| F3 | Armhole height (measured to the level of the 1/2 chest width) | 31.8 | 32.4 | 33.0 | 33.8 |
| E | Shoulder width | 19.1 | 19.8 | 20.5 | 21.7 |
| K | Back neck width | 22.7 | 23.0 | 23.3 | 23.6 |
| K1 | Back neck drop | 1.4 | 1.5 | 1.6 | 1.7 |
| K2 | Front neck drop | 8.7 | 9.0 | 9.3 | 9.6 |
| J1 | Front length from High Point Shoulder (HPS) to hem | 74.5 | 76.0 | 77.5 | 79.0 |
| G | Sleeve length set-in | 61.5 | 61.5 | 61.5 | 61.5 |
| F7 | Sleeve width | 26.3 | 26.9 | 27.5 | 28.4 |
| H | Sleeve opening | 11.2 | 11.5 | 11.8 | 12.2 |
| H1 | Sleeve opening (extented) | 18.6 | 19.0 | 19.4 | 19.9 |
| H2 | Sleeve cuff height | 7.0 | 7.0 | 7.0 | 7.0 |
| V | Hood height | 40.0 | 40.5 | 41.0 | 41.5 |
| Va | Hood height shoulder point | 37.7 | 38.0 | 38.3 | 38.6 |
| V1 | Hood width | 29.1 | 29.5 | 29.9 | 30.3 |
| K01 | Hood draw cord length | 117.0 | 121.0 | 125.0 | 129.0 |
| Pp1 | Patch pocket height side CF/CB | 24.2 | 24.6 | 25.0 | 25.5 |
| Pp3 | Patch pocket height SS | 7.6 | 7.8 | 8.0 | 8.2 |
| Pp4 | Patch pocket widht bottom | 17.8 | 18.4 | 19.0 | 19.7 |
| Pp5 | Patch pocket widht upper | 14.8 | 15.4 | 16.0 | 16.7 |
| Pp6 | Patch pocket widht middle | 18.8 | 19.4 | 20.0 | 20.7 |
Note: These charts are for reference only. Final production specs should be confirmed through sample fitting and brand approval.

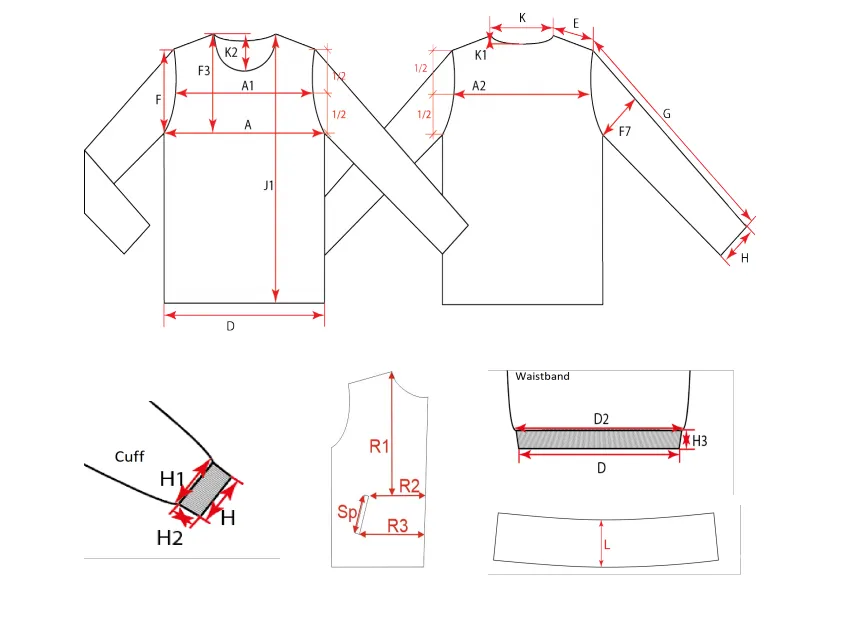

Jacket Measurement Guide & Size Chart Reference
Use this reference chart to review key measurement points, size grading, and fit details for jacket development. Final specs can be customized based on fabric stretch, fit preference, and brand requirements.
| Code | Description | S | M | L | XL |
| A | 1/2 chest (1/2 circumference at armhole level) | 61.0 | 63.0 | 65.0 | 68.0 |
| D2 | Hem width above cuff | 58.0 | 60.0 | 62.0 | 65.0 |
| D | Hem width | 54.0 | 56.0 | 58.0 | 61.0 |
| H3 | Top belt-cuff height | 6.0 | 6.0 | 6.0 | 6.0 |
| F | Armhole drop | 24.0 | 24.5 | 25.0 | 25.7 |
| F3 | Armhole height (measured to the level of the 1/2 chest width) | 27.8 | 28.4 | 29.0 | 29.8 |
| E | Shoulder width | 15.6 | 16.3 | 17.0 | 18.2 |
| K | Back neck width | 17.9 | 18.2 | 18.5 | 18.8 |
| K1 | Back neck drop | 1.3 | 1.4 | 1.5 | 1.6 |
| K2 | Front neck drop | 8.4 | 8.7 | 9.0 | 9.3 |
| J1 | Front length from High Point Shoulder (HPS) to hem | 71.0 | 72.5 | 74.0 | 75.5 |
| A2 | Across back | 80.6 | 81.8 | 83.0 | 84.6 |
| G | Sleeve length set-in | 67.0 | 67.0 | 67.0 | 67.0 |
| F7 | Sleeve width | 21.8 | 22.4 | 23.0 | 23.9 |
| H | Sleeve opening | 10.4 | 10.7 | 11.0 | 11.4 |
| H1 | Sleeve opening (extented) | 17.2 | 17.6 | 18.0 | 18.5 |
| H2 | Sleeve cuff height | 6.0 | 6.0 | 6.0 | 6.0 |
| R1 | Pocket placement from shoulder (HSP) | 42.8 | 43.4 | 44.0 | 44.6 |
| R2 | Pocket distance from center front (upper) | 18.0 | 18.0 | 18.0 | 18.7 |
| R3 | Pocket distance from center front (lower) | 20.5 | 20.5 | 20.5 | 21.0 |
| SP | Pocket opening length | 18.0 | 18.0 | 18.0 | 18.5 |
| SP1 | Pocket width | 1.5 | 1.5 | 1.5 | 1.5 |
| L | Centre back collar height | 8.5 | 8.5 | 8.5 | 8.5 |
Note: These charts are for reference only. Final production specs should be confirmed through sample fitting and brand approval.

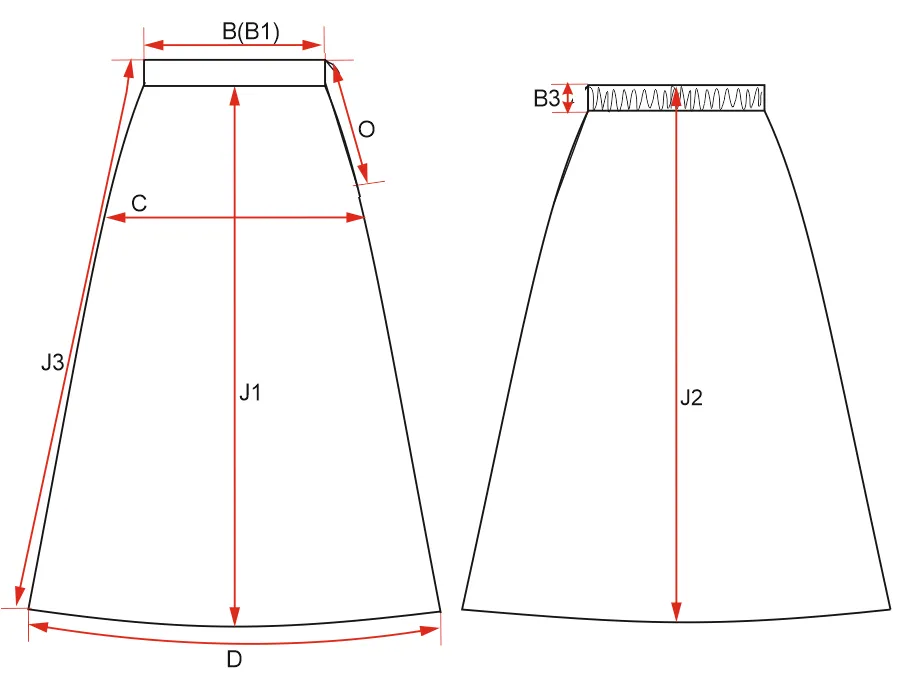

Skirt Measurement Guide & Size Chart Reference
Use this reference chart to review key measurement points, size grading, and fit details for skirt development. Final specs can be customized based on fabric stretch, fit preference, and brand requirements.
| Code | Description | XS | S | M | L | XL | XXL |
| B | Waist width (with elastic tape) | 29.0 | 31.0 | 35.0 | 39.0 | 44.0 | 49.0 |
| B’ | Waist width (extended) | 38.0 | 40.0 | 44.0 | 48.0 | 53.0 | 58.0 |
| C | Hip (20cm from waist seam) | 42.0 | 44.0 | 48.0 | 52.0 | 57.0 | 62.0 |
| D | Hem width | 55.0 | 57.0 | 61.0 | 65.0 | 70.0 | 75.0 |
| J1 | length center front (with waisband) | 99.0 | 99.0 | 99.0 | 99.0 | 101.0 | 103.0 |
| J2 | length center back (with waisband) | 101.0 | 101.0 | 101.0 | 101.0 | 103.0 | 105.0 |
| J3 | Outseam (with waisband) | 103.0 | 103.0 | 103.0 | 103.0 | 105.0 | 107.0 |
Note: These charts are for reference only. Final production specs should be confirmed through sample fitting and brand approval.

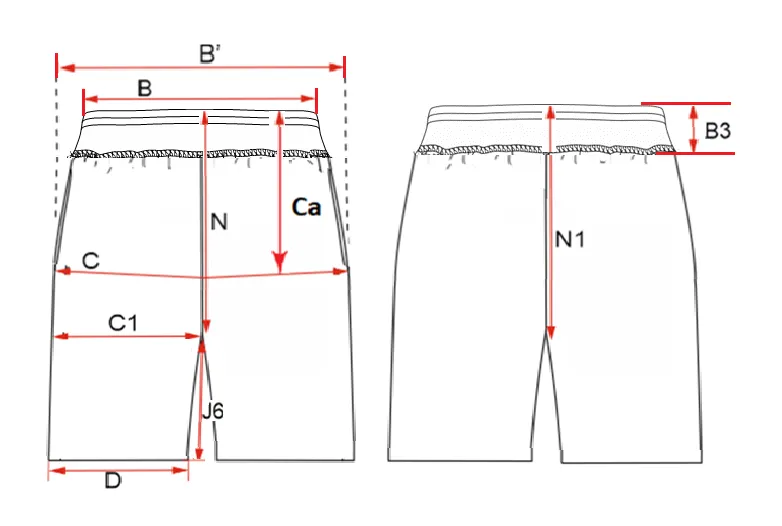

Pants Measurement Guide & Size Chart Reference
Use this reference chart to review key measurement points, size grading, and fit details for pant development. Final specs can be customized based on fabric stretch, fit preference, and brand requirements.
| Code | Description | XS | S | M | L | XL |
| B | Waist width (straight line) | 37.0 | 39.0 | 41.0 | 43.0 | 46.0 |
| B’ | Waist width (extended) | 46.0 | 48.0 | 50.0 | 52.0 | 55.0 |
| B3 | Waistband width | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| C1 | Hip Position below WB | 19.4 | 19.7 | 20.0 | 20.3 | 20.6 |
| C | Hip | 56.0 | 58.0 | 60.0 | 62.0 | 65.0 |
| C1 | Thigh | 33.0 | 34.0 | 35.0 | 36.0 | 37.5 |
| J6 | Inseam | 74.0 | 74.0 | 74.0 | 74.0 | 74.5 |
| J61 | Knee position | 32.5 | 32.5 | 32.5 | 32.5 | 33.5 |
| C2 | Knee width | 27.9 | 28.6 | 29.3 | 30.0 | 31.0 |
| D | Hem width | 28.8 | 29.2 | 29.6 | 30.0 | 30.6 |
| N | Front rise (incl. wb) | 35.9 | 36.7 | 37.5 | 38.3 | 39.3 |
| N1 | Back rise (incl. wb) | 40.1 | 41.3 | 42.5 | 43.7 | 45.2 |
| T4 | Side pocket height along SS | 4.0 | 4.0 | 4.0 | 4.0 | 4.5 |
| T6 | Side pocket placement at SS | 17.0 | 17.0 | 17.0 | 17.0 | 17.5 |
| K61 | Draw cord full length | 128.0 | 132.0 | 136.0 | 140.0 | 146.0 |
Note: These charts are for reference only. Final production specs should be confirmed through sample fitting and brand approval.

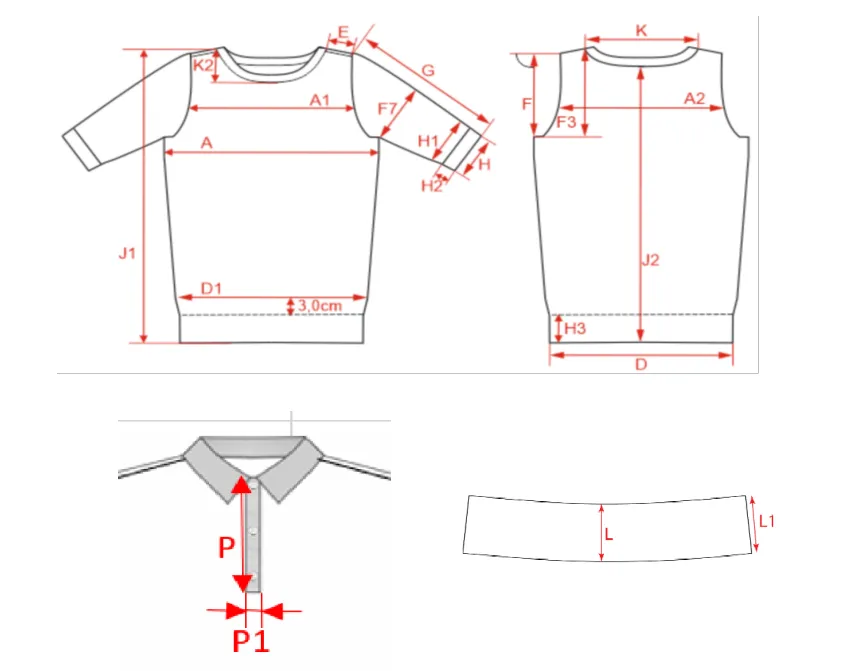

Polo Shirt Measurement Guide & Size Chart Reference
Use this reference chart to review key measurement points, size grading, and fit details for polo development. Final specs can be customized based on fabric stretch, fit preference, and brand requirements.
| Code | Description | XXXS | XXS | XS | S | M | L | XL |
| A | 1/2 chest (1/2 circumference at armhole level) | 34.0 | 36.0 | 38.0 | 40.0 | 42.0 | 45.0 | 48.0 |
| D | Hem width | 30.0 | 32.0 | 34.0 | 36.0 | 38.0 | 41.0 | 44.0 |
| D1 | Hem width | 34.0 | 36.0 | 38.0 | 40.0 | 42.0 | 45.0 | 48.0 |
| H3 | Hem hıght | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| F | Armhole drop | 14.7 | 15.4 | 16.1 | 16.8 | 17.5 | 18.5 | 19.5 |
| F3 | Armhole height | 17.6 | 18.2 | 18.8 | 19.4 | 20.0 | 20.8 | 21.6 |
| E | Shoulder width | 8.0 | 8.5 | 9.0 | 9.5 | 10.0 | 10.5 | 11.0 |
| K | Back neck width | 13.9 | 14.3 | 14.7 | 15.1 | 15.5 | 15.9 | 16.3 |
| K2 | Front neck drop from shoulder seam | 5.3 | 5.6 | 5.9 | 6.2 | 6.5 | 6.8 | 7.1 |
| J1 | Front length from High Point Shoulder seam | 44.0 | 46.0 | 48.0 | 50.0 | 52.0 | 55.0 | 58.0 |
| G | Sleeve length set-in (long) | 11.0 | 12.0 | 13.0 | 14.0 | 15.0 | 17.0 | 19.0 |
| F7 | Sleeve width | 11.5 | 12.0 | 12.5 | 13.0 | 13.5 | 14.0 | 14.5 |
| H | Sleeve opening | 9.0 | 9.5 | 10.0 | 10.5 | 11.0 | 11.3 | 11.6 |
| H1 | Sleeve opening (extented) | 10.2 | 10.9 | 11.6 | 12.3 | 13.0 | 13.5 | 14.0 |
| H2 | Sleeve cuff height | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| P | Height of placket | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 |
| P1 | Width of placket | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| L | Height of collar | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 |
Note: These charts are for reference only. Final production specs should be confirmed through sample fitting and brand approval.

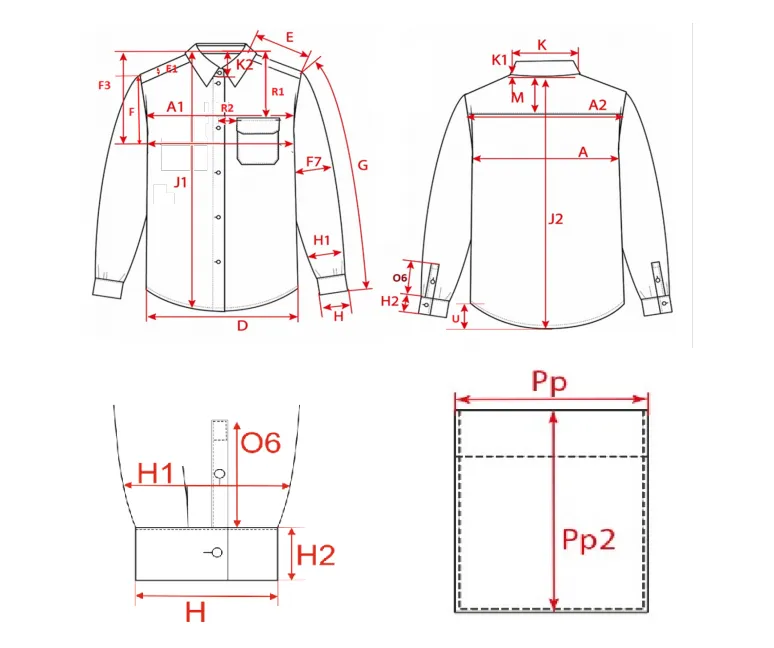

Shirt Measurement Guide & Size Chart Reference
Use this reference chart to review key measurement points, size grading, and fit details for shirt development. Final specs can be customized based on fabric stretch, fit preference, and brand requirements.
| Code | Description | XXXS | XXS | XS | S | M | L | XL |
| A | 1/2 chest (1/2 circumference at armhole level) | 36.0 | 38.0 | 40.0 | 42.0 | 44.0 | 47.0 | 50.0 |
| D | Hem width | 36.0 | 38.0 | 40.0 | 42.0 | 44.0 | 47.0 | 50.0 |
| F | Armhole drop | 14.7 | 15.4 | 16.1 | 16.8 | 17.5 | 18.5 | 19.5 |
| F3 | Armhole height | 17.6 | 18.2 | 18.8 | 19.4 | 20.0 | 20.8 | 21.6 |
| M | Back yoke height СB | 7.2 | 7.9 | 8.6 | 9.3 | 10.0 | 10.7 | 11.4 |
| E | Shoulder width | 10.0 | 10.5 | 11.0 | 11.5 | 12.0 | 12.5 | 13.0 |
| E1 | Front shoulder turns | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| K | Back neck width | 12.4 | 12.8 | 13.2 | 13.6 | 14.0 | 14.4 | 14.8 |
| K2 | Front neck drop from shoulder seam | 6.3 | 6.6 | 6.9 | 7.2 | 7.5 | 7.8 | 8.1 |
| J1 | Front length from High Point Shoulder seam | 52.0 | 54.0 | 56.0 | 58.0 | 60.0 | 63.0 | 66.0 |
| G | Sleeve length set-in (long) | 43.0 | 46.0 | 49.0 | 52.0 | 55.0 | 58.5 | 62.0 |
| F7 | Sleeve width | 14.7 | 15.4 | 16.1 | 16.8 | 17.5 | 18.0 | 18.5 |
| H | Sleeve opening | 7.0 | 7.5 | 8.0 | 8.5 | 9.0 | 9.3 | 9.6 |
| H1 | Sleeve opening (extented) | 11.2 | 11.9 | 12.6 | 13.3 | 14.0 | 14.5 | 15.0 |
| H2 | Sleeve cuff height | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| O6 | Sleeve placket/cut length | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| L | Height of collar | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 |
| L2 | Height of standcollar | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| L5 | Width of edge collar | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 |
| R1 | Distance to pocket from shoulder seam | 16.0 | 16.5 | 17.0 | 17.5 | 18.0 | 18.5 | 19.0 |
| R2 | Distance to pocket from edge front | 3.3 | 3.6 | 3.9 | 4.2 | 4.5 | 4.8 | 5.1 |
| Pp | Width of pocket | 8.8 | 9.1 | 9.4 | 9.7 | 10.0 | 10.3 | 10.6 |
| Pp2 | Height of pocket | 11.8 | 12.1 | 12.4 | 12.7 | 13.0 | 13.3 | 13.6 |
Note: These charts are for reference only. Final production specs should be confirmed through sample fitting and brand approval.

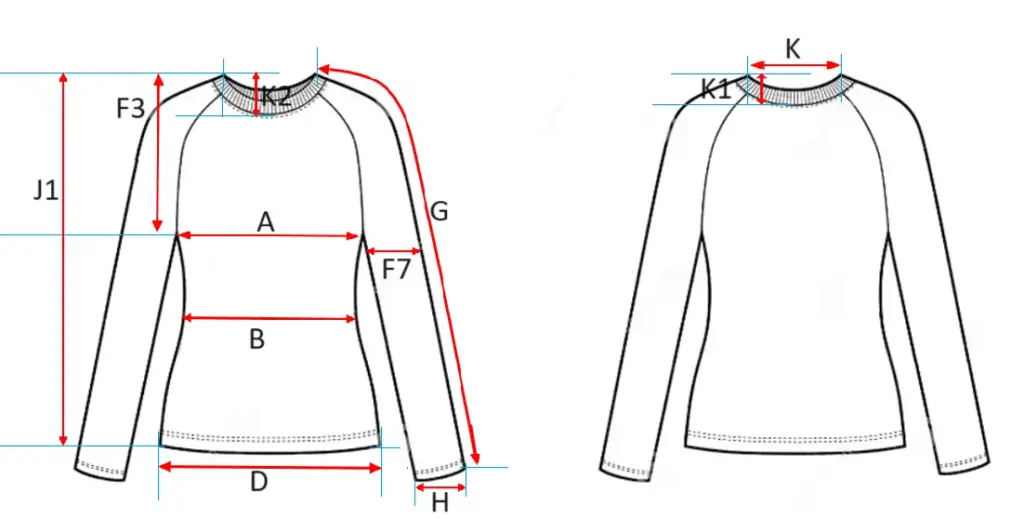

Sweater Measurement Guide & Size Chart Reference
Use this reference chart to review key measurement points, size grading, and fit details for sweater development. Final specs can be customized based on fabric stretch, fit preference, and brand requirements.
| Code | Description | XS | S | M | L | XL |
| A | 1/2 chest (1/2 circumference at armhole level) | 38.0 | 42.0 | 46.0 | 50.0 | 55.0 |
| B | Waist | 36.0 | 40.0 | 44.0 | 48.0 | 53.0 |
| D | Hem width | 40.0 | 44.0 | 48.0 | 52.0 | 57.0 |
| F3 | Armhole drop from upper shoulder point | 20.2 | 21.6 | 23.0 | 24.4 | 26.0 |
| K | Back neck width | 15.4 | 16.2 | 17.0 | 17.8 | 18.6 |
| K2 | Front neck drop from shoulder point | 8.3 | 8.9 | 9.5 | 10.1 | 10.7 |
| K1 | Back neck drop from shoulder point | 1.4 | 1.4 | 1.5 | 1.5 | 1.7 |
| J1 | Front length | 48.0 | 50.0 | 52.0 | 54.0 | 57.0 |
| G | Sleeve length set-in | 72.0 | 72.0 | 72.0 | 72.0 | 71.2 |
| F7 | Sleeve width | 14.2 | 15.6 | 17.0 | 18.4 | 20.2 |
| H | Sleeve opening | 8.8 | 9.4 | 10.0 | 10.6 | 11.2 |
Note: These charts are for reference only. Final production specs should be confirmed through sample fitting and brand approval.

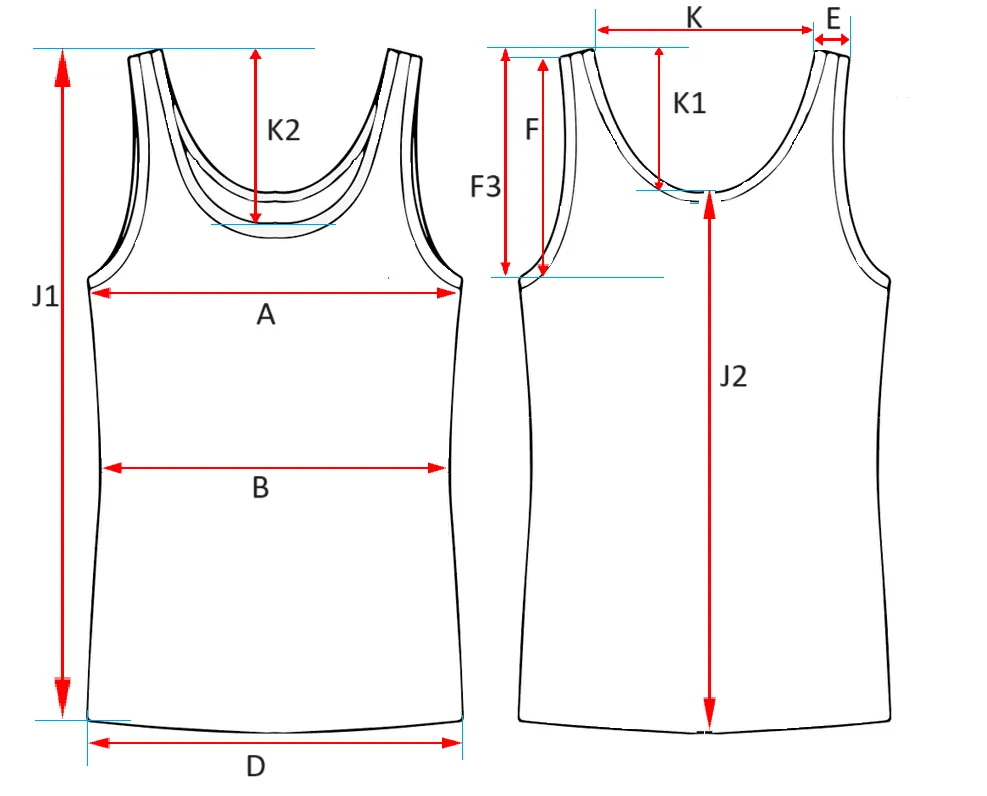

Tank Top Measurement Guide & Size Chart Reference
Use this reference chart to review key measurement points, size grading, and fit details for tank top development. Final specs can be customized based on fabric stretch, fit preference, and brand requirements.
| Code | Description | S | M | L | XL | XXL |
| A | 1/2 chest (1/2 circumference at armhole level) | 38.0 | 42.0 | 46.0 | 51.0 | 56.0 |
| B | Waist | 36.0 | 40.0 | 44.0 | 49.0 | 54.0 |
| D | Hem width | 40.0 | 44.0 | 48.0 | 53.0 | 58.0 |
| F | Armhole drop | 20.0 | 21.0 | 22.0 | 23.2 | 24.4 |
| F3 | Armhole drop from upper shoulder point | 21.6 | 23.0 | 24.4 | 26.0 | 27.6 |
| E | Shoulder Wıdth | 3.4 | 4.0 | 4.6 | 5.2 | 5.8 |
| K | Back neck width | 19.2 | 20.0 | 20.8 | 21.6 | 22.4 |
| K1 | Back neck drop from shoulder point | 9.9 | 10.0 | 10.0 | 10.2 | 10.4 |
| K2 | Front neck drop from shoulder point | 15.4 | 16.0 | 16.6 | 17.2 | 17.8 |
| J1 | Front length | 53.0 | 55.0 | 57.0 | 60.0 | 63.0 |
Note: These charts are for reference only. Final production specs should be confirmed through sample fitting and brand approval.

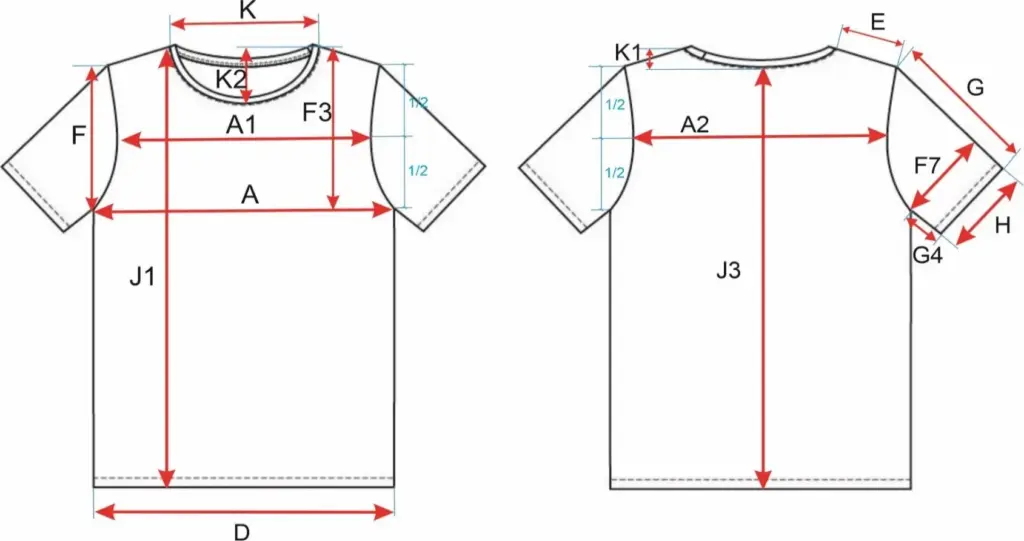

T-Shirt Measurement Guide & Size Chart Reference
Use this reference chart to review key measurement points, size grading, and fit details for t-shirt development. Final specs can be customized based on fabric stretch, fit preference, and brand requirements.
| Code | Description | XXXS | XXS | XS | S | M | L | XL |
| A | 1/2 chest (1/2 circumference at armhole level) | 33.0 | 35.0 | 37.0 | 39.0 | 41.0 | 44.0 | 47.0 |
| D | Hem width | 33.0 | 35.0 | 37.0 | 39.0 | 41.0 | 44.0 | 47.0 |
| F | Armhole drop | 14.2 | 14.9 | 15.6 | 16.3 | 17.0 | 18.0 | 19.0 |
| F3 | Armhole height | 16.6 | 17.2 | 17.8 | 18.4 | 19.0 | 19.8 | 20.6 |
| E | Shoulder width | 7.5 | 8.0 | 8.5 | 9.0 | 9.5 | 10.0 | 10.5 |
| K | Back neck width | 14.9 | 15.3 | 15.7 | 16.1 | 16.5 | 16.9 | 17.3 |
| K2 | Front neck drop from shoulder seam | 5.8 | 6.1 | 6.4 | 6.7 | 7.0 | 7.3 | 7.6 |
| J1 | Front length from High Point Shoulder seam | 48.0 | 50.0 | 52.0 | 54.0 | 56.0 | 59.0 | 62.0 |
| G | Sleeve length set-in (long) | 11.0 | 13.0 | 15.0 | 17.0 | 19.0 | 21.0 | 23.0 |
| F7 | Sleeve width | 12.2 | 12.9 | 13.6 | 14.3 | 15.0 | 15.5 | 16.0 |
| H | Sleeve opening | 12.0 | 12.5 | 13.0 | 13.5 | 14.0 | 14.3 | 14.6 |
| Z | Neck rib/self fabric cuff | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Note: These charts are for reference only. Final production specs should be confirmed through sample fitting and brand approval.

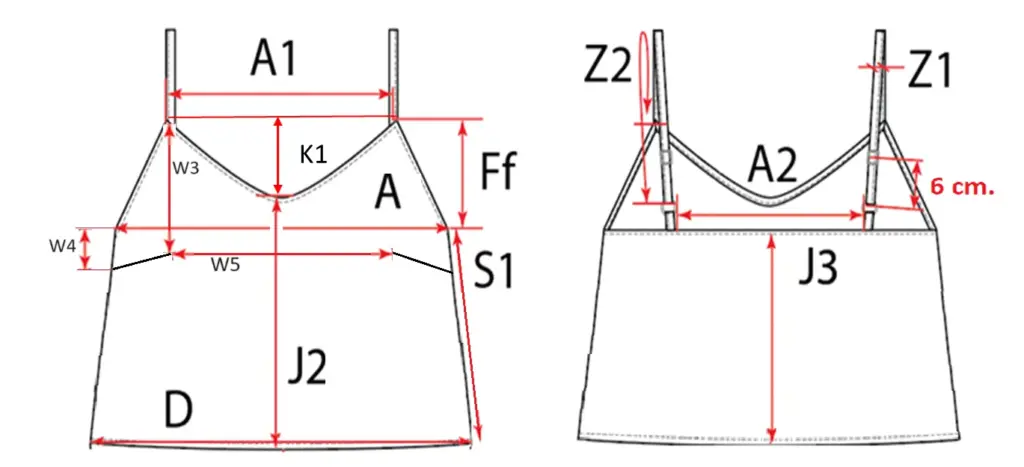

Cami Top Measurement Guide & Size Chart Reference
Use this reference chart to review key measurement points, size grading, and fit details for cami top development. Final specs can be customized based on fabric stretch, fit preference, and brand requirements.
| Code | Description | XS | S | M | L | XL |
| A | Width chest | 41.0 | 45.0 | 49.0 | 53.0 | 58.0 |
| B | Width Waist | 36.0 | 40.0 | 44.0 | 48.0 | 53.0 |
| A1 | Across front | 19.7 | 21.1 | 22.5 | 23.9 | 25.3 |
| A2 | Across back | 17.4 | 19.2 | 21.0 | 22.8 | 24.6 |
| D | Hem width | 44.0 | 48.0 | 52.0 | 56.0 | 61.0 |
| J2 | Centre Front length (CF length) | 31.7 | 33.1 | 34.5 | 35.9 | 37.3 |
| J3 | Centre Back length (CB length) | 30.0 | 30.0 | 30.5 | 31.0 | 31.5 |
| S1 | Length side seam including lace | 28.0 | 28.0 | 29.0 | 30.0 | 30.5 |
| K4 | Gathering length | -0.5 | 0.5 | 1.5 | 2.5 | 3.5 |
| Ff | Armhole drop front | 7.5 | 7.5 | 8.5 | 9.5 | 10.0 |
| K1 | Front neck drop | 2.8 | 3.4 | 4.0 | 4.6 | 5.2 |
| Z1 | Width straps | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Z2 | Straps length | 34.5 | 35.5 | 36.5 | 37.5 | 38.5 |
| W3 | Front top dart from | 9.6 | 10.4 | 11.2 | 12.0 | 13.2 |
| W4 | Front top dart from armhole | 4.9 | 5.1 | 5.3 | 5.5 | 5.7 |
| W5 | Distance between chest darts | 29.6 | 30.4 | 31.2 | 32.0 | 33.0 |
Note: These charts are for reference only. Final production specs should be confirmed through sample fitting and brand approval.
Shorts Measurement Guide & Size Chart Reference
Use this reference chart to review key measurement points, size grading, and fit details for short development. Final specs can be customized based on fabric stretch, fit preference, and brand requirements.
| Code | Description | S | M | L | XL | XXL |
| B | Waist width from the top | 32.0 | 36.0 | 40.0 | 45.0 | 50.0 |
| B’ | Waist width EXTENDED | 44.0 | 48.0 | 52.0 | 57.0 | 62.0 |
| B3 | Waistband width | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| Ca | hip measurement level in the center of the front, including the waistband | 19.0 | 20.0 | 21.0 | 23.0 | 25.0 |
| C | Hip | 48.0 | 52.0 | 56.0 | 61.0 | 66.0 |
| C1 | Thigh | 28.4 | 31.0 | 33.6 | 36.6 | 39.6 |
| J6 | Inseam | 20.0 | 20.0 | 20.0 | 19.2 | 18.4 |
| D | Hem width | 30.0 | 31.0 | 32.0 | 33.0 | 34.0 |
| N | Front rise (incl. wb) | 28.6 | 30.0 | 31.4 | 33.8 | 36.2 |
| N1 | Back rise (incl. wb) | 38.0 | 40.0 | 42.0 | 45.0 | 48.0 |
Note: These charts are for reference only. Final production specs should be confirmed through sample fitting and brand approval.
FAQ
A garment measurement chart shows the finished clothing measurements for each size, such as bust, waist, hip, shoulder, sleeve length, body length, inseam, and hem width. It is used by pattern makers, sample rooms, and factories to develop samples and control bulk production sizing.
These charts are garment measurements unless stated otherwise. Body measurements describe the wearer’s body, while garment measurements describe the finished product. The difference between them is called ease, and it changes depending on fabric, fit style, and garment category.
Yes. These size charts are reference examples only. Final measurements can be adjusted based on your target market, size range, fit preference, fabric stretch, design details, and sample fitting feedback.
Stretch fabrics usually need different ease and fit settings than non-stretch fabrics. Some fabrics may also shrink after washing, dyeing, or finishing, so production size specs should consider fabric testing, shrinkage allowance, and final sample approval.
Yes. TrueKung can help fashion brands develop production-ready size specs from a tech pack, reference sample, sketch, or target size range. We can support pattern adjustment, sample development, size grading, fitting revision, and bulk measurement control.
You can send your tech pack, reference sample photos, target size range, fit comments, fabric details, and preferred market sizing, such as US, EU, UK, or AU. Our team will review the information and suggest measurements for sample development and bulk production.
Need a Custom Size Chart for Your Brand?
Send us your target size range, sample photos, tech pack, or reference measurements. TrueKung can help adjust measurements, develop samples, and confirm production-ready specs.
If you need help turning these reference measurements into production-ready specs, TrueKung can support sample development, pattern adjustment, size grading, and bulk production.
Views: 220
